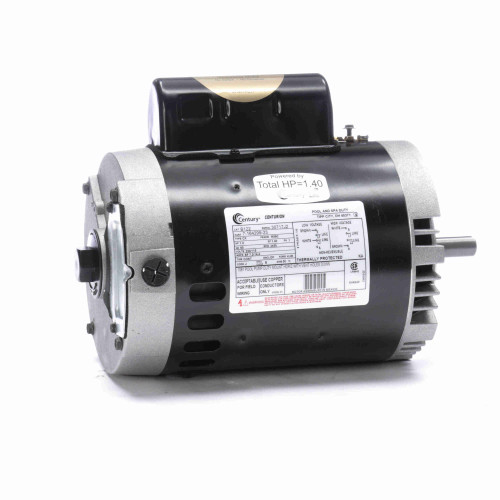

1 HP C Face Keyed Shaft Horizontal Pool Pump Motor, 1.40 SF

This keyed shaft is designed to satisfy every customer! Remember, you should be very careful while choosing mechanical devices. Made with quality materials, this worthy device will be a life-long asset!

Product Features:
Switchless rigid base pool pump motor
Comes with 304 bearing shaft end
Includes permanent split capacitor
Contains open drip-proof technology

Additional Features:
Output HP: 1.0 Hp
Current: SF 7.2/14.4 A
Frequency: 60 Hz
Service Factor: 1.4
Duty: continuous
Frame size: M56C
Protector: thermally protected
UL: recognized
Output KW: 0.75 kW
Voltage: 230/115 V
Speed: 3450 rpm
Ambient temperature: 50°C
Phase: 1
Insulation Class: B
Enclosure: drip proof
CSA: Y
Electrical type: permanent split capacitor, single or dual voltage
Rotation: counterclockwise pump end
Motor orientation: horizontal
Opp drive end bearing: BALL
Shaft type: keyed
Poles: 2
Mounting: C face
Drive end bearing: BALL

Dimensions:
Frame length: 6.75"
Shaft extension: 2.07"
Overall length: 11.89"
Shaft diameter: 0.62"

Material(s): stainless steel
Frame material: rolled steel
Item Number: DBAY B122
