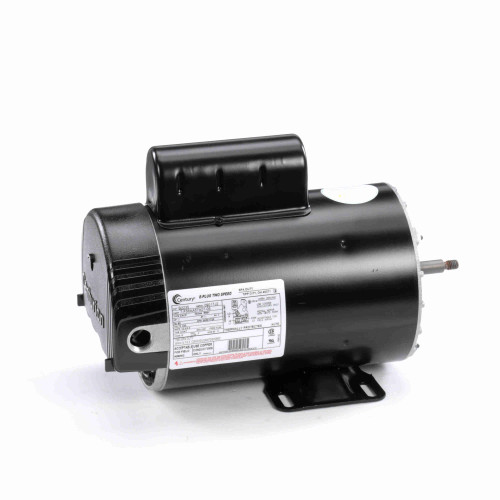

4 HP Thru Bolt Threaded Shaft Horizontal Pool Pump Motor, 1 SF

This motor is of the finest quality and assured to get the most beneficial in terms of stability and performance. No more concern about pumping water as you have the apt device for life-long utilization. Cheap and reliable, as most customers expect!

Product Features:
Two speed rigid base pool pump motor
Comes with four thru bolts on a 5.812 bolt circle
Contains open drip-proof technology

Additional Features:
Output HP: 4, 1/3 Hp
Current: 12.0/3.0 A
Frequency: 60 Hz
Service Factor: 1
Duty: continuous
Frame size: R56Y
Protector: thermally protected
UL: recognized
Output KW: 3.0 kW
Voltage: 230 V
Speed: 3450/1725 rpm
Ambient temperature: 50°C
Phase: 1
Insulation Class: F
Enclosure: drip proof
CSA: Y
Electrical type: psc low speed, cap start/cap run high speed
Rotation: counterclockwise pump end
Motor orientation: horizontal
Opp drive end bearing: BALL
Shaft type: threaded
Poles: 2/4
Mounting: thru bolt
Drive end bearing: BALL

Dimensions:
Frame length: 8.75"
Shaft extension: 2.37"
Overall length: 13.49"
Shaft diameter: 0.50"

Material(s): stainless steel
Frame material: rolled steel
Item Number: DBAY B2235
