Description

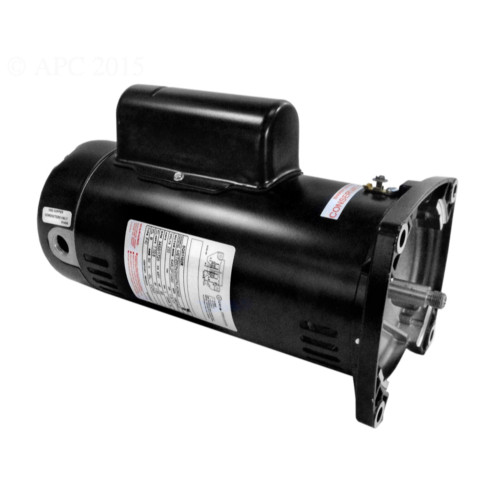

This 2-speed full-rated motor is an excellent replacement motor for your swimming pool. With a promising service factor of 1.65, it also avoids premature deterioration. Designed to prevent overheating, high-quality ventilation openings are an added benefit.
Product Features:
Energy-efficient two speed pool pump motor
Stainless steel shaft for corrosion protection
Advanced cooling system for extended motor life
Capacitor start low speed
PSC high speed
Open drip proof
Pump motor has a threaded shaft that allows for convenient and direct mounting
Additional Features:
Phase type: single phase
Voltage: 230 V
Power: 3600 RPM
Energy efficiency: high energy efficiency
Flange type: square flange
Motor frame: 48Y
Shaft: 303
Ambient: 50°C
Frame length: 9.94"
Shaft diameter: 0.625"
Shaft extension: 0.906"
Material(s): stainless steel
Frame material: rolled steel
Item Number: DBAY SQS1102R
Product Features:
Energy-efficient two speed pool pump motor
Stainless steel shaft for corrosion protection
Advanced cooling system for extended motor life
Capacitor start low speed
PSC high speed
Open drip proof
Pump motor has a threaded shaft that allows for convenient and direct mounting
Additional Features:
Phase type: single phase
Voltage: 230 V
Power: 3600 RPM
Energy efficiency: high energy efficiency
Flange type: square flange
Motor frame: 48Y
Shaft: 303
Ambient: 50°C
Frame length: 9.94"
Shaft diameter: 0.625"
Shaft extension: 0.906"
Material(s): stainless steel
Frame material: rolled steel
Item Number: DBAY SQS1102R
Product Specifications
| Weight | Width | Height | Depth |
|---|---|---|---|
| 1.00 LBS | 1.00" | 1.00" | 1.00" |
