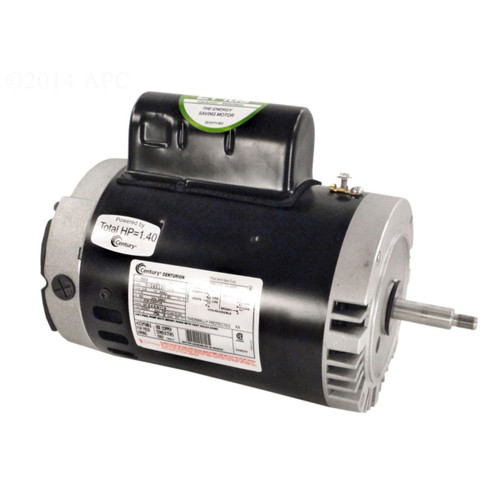

1 HP C-Face Full Rated Pool Pump Motor, 1.40 SF

Are you looking for a reliable motor for your swimming pool? Mechanical devices are meant to be long-lasting, efficient and cheap, just like this quality motor. Don't just settle with some regular motor by throwing your money, grab this precise piece of engineering and live the day!

Product Features:
Full rated energy-efficient switchless pool pump motor
Stainless steel shaft for corrosion protection
Sealed ball bearings reduce wear and tear
Bearing shaft end
Open drip-proof design allows air to circulate through the windings
Permanent split capacitor for enhanced running efficiency
Pump motor has a threaded shaft that allows for convenient and direct mounting

Additional Features:
Output HP: 1.0
Frequency: 60 Hz
Current: SF 6.4-5.9/11.8 A
Service Factor: 1.40
Frame: X56J
Output KW: 0.75 kW
Voltage: 208-230/115 V
Speed: 3450 rpm
Phase: 1
Insulation class: B
Enclosure: drip proof
Ambient temperature: 50°C
Electrical type: permanent split capacitor, single or dual voltage
Rotation: counterclockwise pump end
Motor orientation: horizontal
Opp drive end bearing: ball
Shaft type: threaded
Mounting: C-face
Drive end bearing: ball

Dimensions:
Shaft diameter: 0.625"
Frame length: 7.50"
Shaft extension: 2.56"

Material(s): rolled steel/stainless steel
Item Number: DBAY B654
