Here shaft is threaded to make it more efficient and noise-free! Remember, you should be very careful while choosing mechanical devices. Made with quality materials, this worthy motor will be a life-long asset!

Product Features:

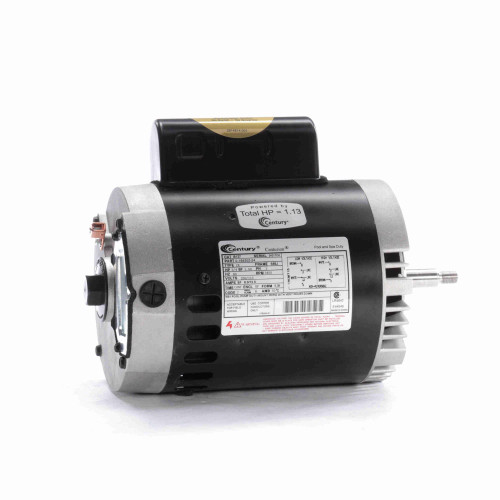

Switchless rigid base pool pump motor
Comes with 304 bearing shaft end and 303 stainless steel shaft
Includes permanent split capacitor
Contains open drip-proof technology

Additional Features:
Output HP: 3/4 Hp
Current: SF 6.0/12.0 A
Frequency: 60 Hz
Service Factor: 1.5
Duty: continuous
Frame size: S56J
Protector: thermally protected
UL: recognized
Output KW: 0.56 kW
Voltage: 230/115 V
Speed: 3450 rpm
Ambient temperature: 50°C
Phase: 1
Insulation Class: B
Enclosure: drip proof
CSA: Y
Electrical type: permanent split capacitor, single or dual voltage
Rotation: counterclockwise pump end
Motor orientation: horizontal
Opp drive end bearing: BALL
Shaft type: threaded
Poles: 2
Mounting: C face
Drive end bearing: BALL

Dimensions:
Frame length: 6.38"
Shaft extension: 2.57"
Overall length: 12.01"
Shaft diameter: 0.62"

Material(s): stainless steel
Frame material: rolled steel
