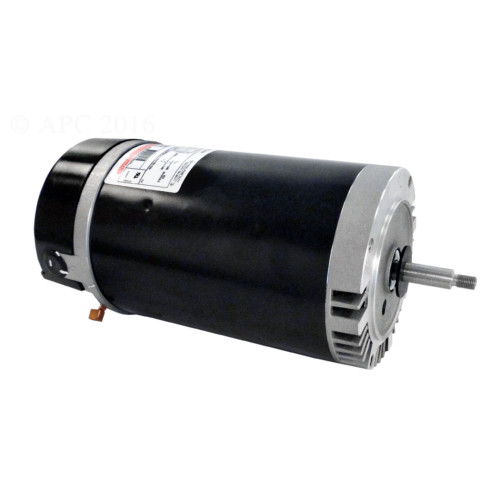

2 HP Black and Silver North Star Threaded Shaft Pool Pump Motor, 1.35 SF

The Pool Supply Shop

2 HP Black and Silver North Star Threaded Shaft Pool Pump Motor, 1.35 SF

$952.99
Current Stock: 17
Adding to cart… The item has been added
  • 2 HP black and silver threaded shaft pool pump motor
  • Energy efficient and low noise pool pump motor
  • Stainless steel shaft for corrosion protection
  • Its sealed ball bearings promise a long lasting lifespan
SKU:
DBAY SN1202

Description

This 2 HP for motor for swimming pools will be the right choice for you. It ensures a high flow rate. With a service factor of 1.35, it has an easily accessible shaft. It is an added benefit that you can multiply the service factor times the horsepower(HP) to get the actual rated HP of the motor.

Product Features:
Switch less pool pump motor is used has ground swimming pool pumps
Energy efficient and low noise pool pump motor
Stainless steel shaft for corrosion protection
E-coated main frame for superior corrosion resistance
Class B insulation prevents meltdowns and overheating
Cool running for longer winding life
Its sealed ball bearings promise a long-lasting lifespan
Includes permanent split capacitor and switch less design

Additional Features:
Horsepower: 2 HP
Output: 1.5 kW
Frequency: 60 Hz
Voltage: 208-230 V
Current: 13.0-11.8 A
Speed: 3450 RPM
Service Factor: 1.35 HP
Phase: 1
Duty: continuous
Thermal Protection: thermally protected
Enclosure: drip proof
Ambient Temperature: 50 °C
Electrical Type: permanent split capacitor, single or dual voltage
Rotation: counterclockwise pump end
Mounting: C face
Drive End Bearing: ball bearing
Motor Orientation: horizontal
Opp Drive End Bearing: ball bearing
Frame Material: rolled Steel
Shaft Type: threaded
Overall Length: 14.6"
Frame Length: 8.57"
Shaft Diameter: 0.625"
Shaft Extension: 2.557"

Material(s): stainless steel
Item Number: DBAY SN1202

Product Specifications

Weight Width Height Depth Assembly Requirements
1.00 LBS 1.00" 1.00" 1.00" No assembly required
