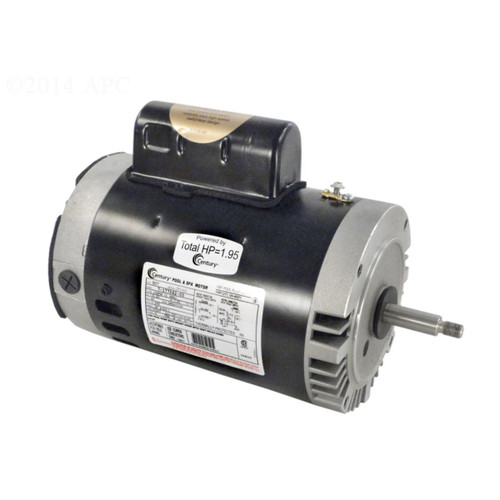

The C-face threaded shaft and 2-speed design make this motor as unique as you! Perfect for daily use under rough conditions, and it's cheap and requires low maintenance. Efficient and sturdy!

Product Features:
Energy-efficient dual speed pool pump motor
Stainless steel shaft for corrosion protection
High speed switchless; low speed microswitch
Sealed ball bearings reduce wear and tear
Permanent split capacitor for enhanced running efficiency
Pump motor has a threaded shaft that allows for convenient and direct mounting

Additional Features:
Output HP: 1.5/0.20
Frequency: 60 Hz
Current: SF 8.7/1.9 A
Service factor: 1.30
Frame: Y56J
Output KW: 1.1 kW
Voltage: 230 V
Speed: 3450/1725 rpm
Phase: 1
Insulation class: F
Enclosure: drip proof
Ambient temperature: 50°C
Electrical type: PSC low speed, cap start/cap run high speed
Rotation: clockwise
Motor orientation: horizontal
Opp drive end bearing: ball
Shaft type: threaded
Mounting: C-face
Drive end bearing: ball

Dimensions:
Shaft diameter: 0.62"
Frame length: 8"
Shaft extension: 2.57"

Material(s): rolled steel/stainless steel
Item Number: DBAY B2977
